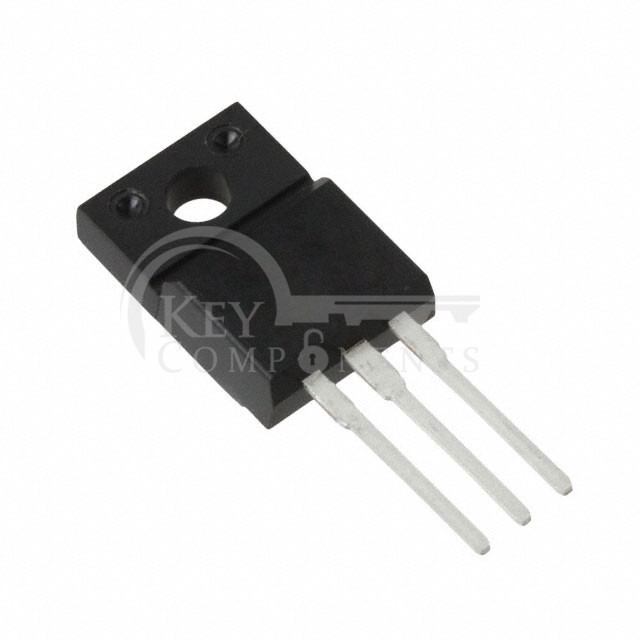

AOTF474

Manufacturer Part	AOTF474
Manufacturer	Alpha & Omega Semiconductor Inc.
Description	MOSFET N-CH 75V 9A/47A TO220FL
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	75 V
Current - Continuous Drain (Id) @ 25°C:	9A (Ta), 47A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	11.3mOhm @ 30A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	60 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	3370 pF @ 30 V
FET Feature:	-
Power Dissipation (Max):	1.9W (Ta), 57.5W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-220FL
Package / Case:	TO-220-3 Full Pack
