AON7934

Manufacturer Part	AON7934
Manufacturer	Alpha & Omega Semiconductor Inc.
Description	MOSFET 2N-CH 30V 13A/15A 8DFN
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	2 N-Channel (Half Bridge)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	30V
Current - Continuous Drain (Id) @ 25°C:	13A, 15A
Rds On (Max) @ Id, Vgs:	10.2mOhm @ 13A, 10V
Vgs(th) (Max) @ Id:	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	11nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	485pF @ 15V
Power - Max:	2.5W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount

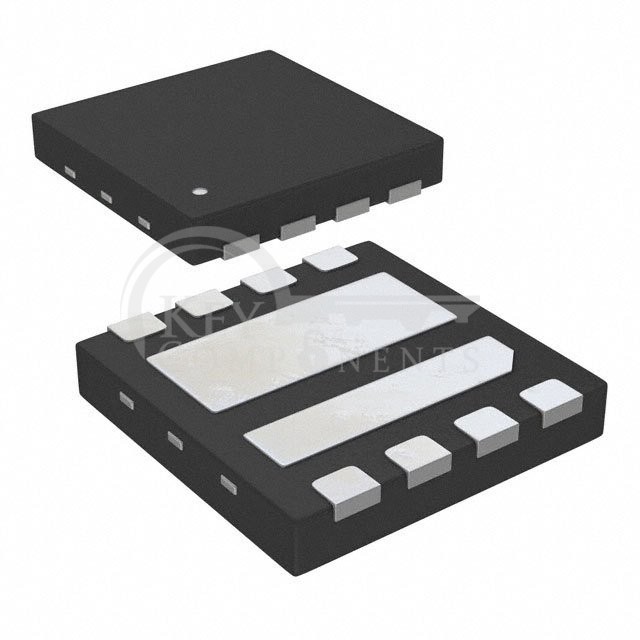

Package / Case:	8-WDFN Exposed Pad
Supplier Device Package:	8-DFN-EP (3x3)
