AON6810

Manufacturer Part	AON6810
Manufacturer	Alpha & Omega Semiconductor Inc.
Description	MOSFET 2N-CH 30V 25A 8-DFN
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	2 N-Channel (Dual) Common Drain
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	30V
Current - Continuous Drain (Id) @ 25°C:	25A
Rds On (Max) @ Id, Vgs:	4.4mOhm @ 20A, 10V
Vgs(th) (Max) @ Id:	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	34nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	1720pF @ 15V
Power - Max:	4.1W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount

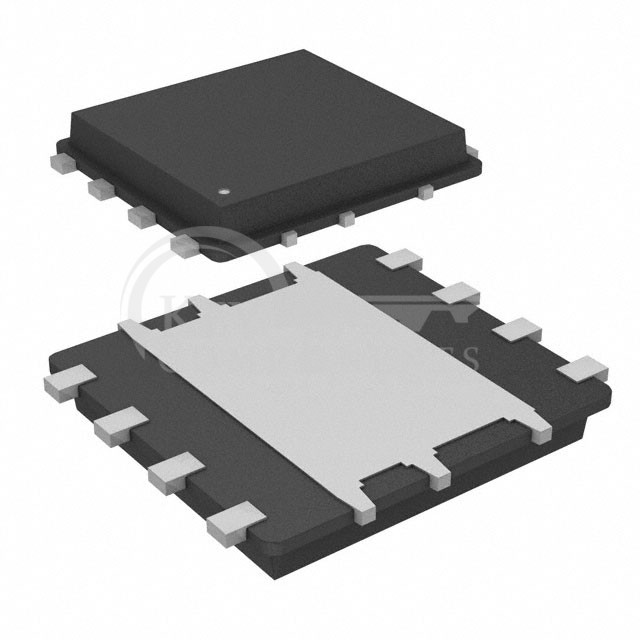

Package / Case:	8-SMD, Flat Lead Exposed Pad
Supplier Device Package:	8-DFN-EP (5x6)
