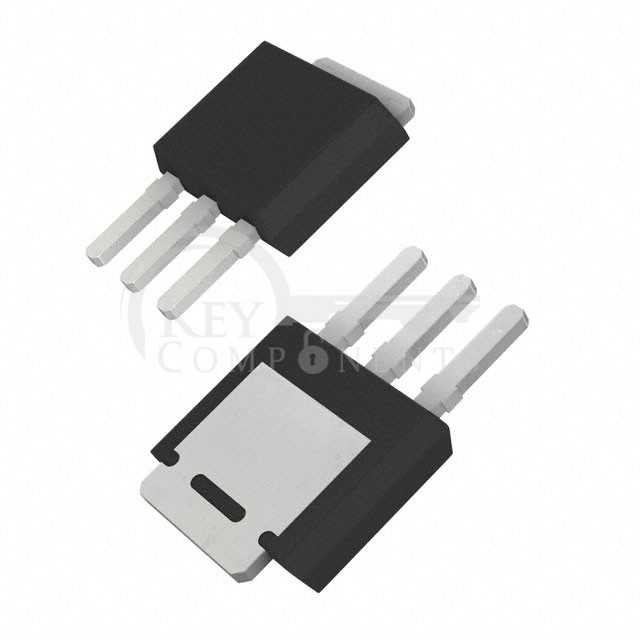

AOI518

Manufacturer Part	AOI518
Manufacturer	Alpha & Omega Semiconductor Inc.
Description	MOSFET N-CH 30V 18A/46A TO251A
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	18A (Ta), 46A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	8mOhm @ 20A, 10V
Vgs(th) (Max) @ Id:	2.6V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	22.5 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	951 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	2.5W (Ta), 50W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-251A
Package / Case:	TO-251-3 Stub Leads, IPak
