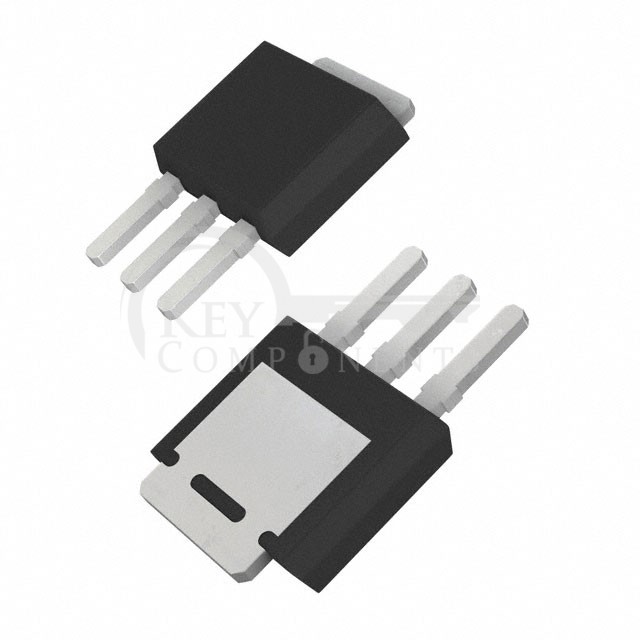

AOI2N60

Manufacturer Part	AOI2N60
Manufacturer	Alpha & Omega Semiconductor Inc.
Description	MOSFET N-CH 600V 2A TO251A
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	600 V
Current - Continuous Drain (Id) @ 25°C:	2A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	4.4Ohm @ 1A, 10V
Vgs(th) (Max) @ Id:	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	11 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	325 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	56.8W (Tc)
Operating Temperature:	-50°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-251A
Package / Case:	TO-251-3 Stub Leads, IPak
