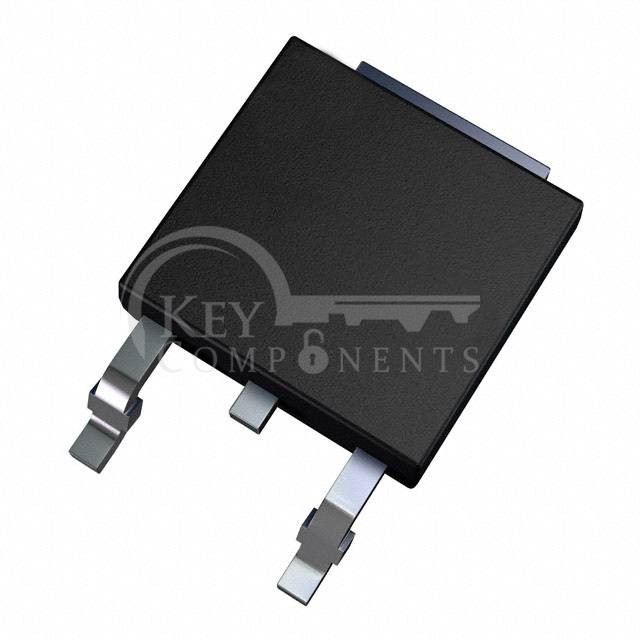

AOD478

Manufacturer Part	AOD478
Manufacturer	Alpha & Omega Semiconductor Inc.
Description	MOSFET N-CH 100V 2.5A/11A TO252
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	100 V
Current - Continuous Drain (Id) @ 25°C:	2.5A (Ta), 11A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	140mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id:	2.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	13 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	540 pF @ 50 V
FET Feature:	-
Power Dissipation (Max):	2.1W (Ta), 45W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	TO-252 (DPAK)
Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63
