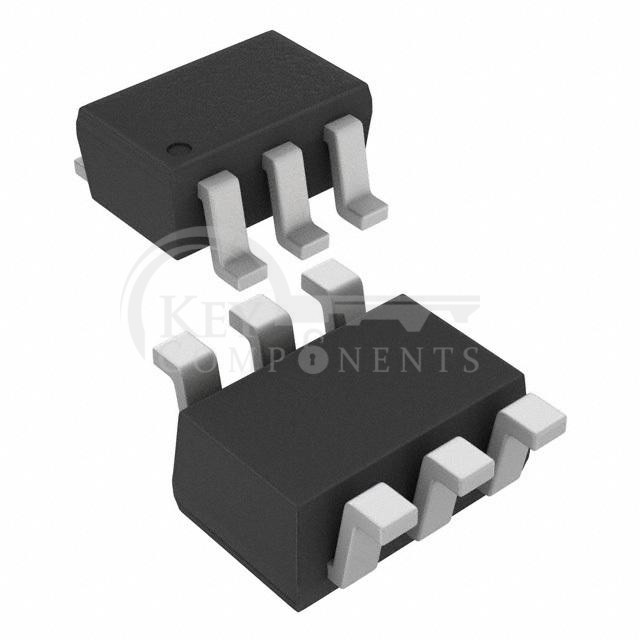

AO7600

Manufacturer Part	AO7600
Manufacturer	Alpha & Omega Semiconductor Inc.
Description	MOSFET N/P-CH 20V SC70-6
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Obsolete
FET Type:	N and P-Channel
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	900mA, 600mA
Rds On (Max) @ Id, Vgs:	300mOhm @ 900mA, 4.5V
Vgs(th) (Max) @ Id:	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	1.9nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	120pF @ 10V
Power - Max:	300mW
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	6-TSSOP, SC-88, SOT-363
Supplier Device Package:	SC-70-6
