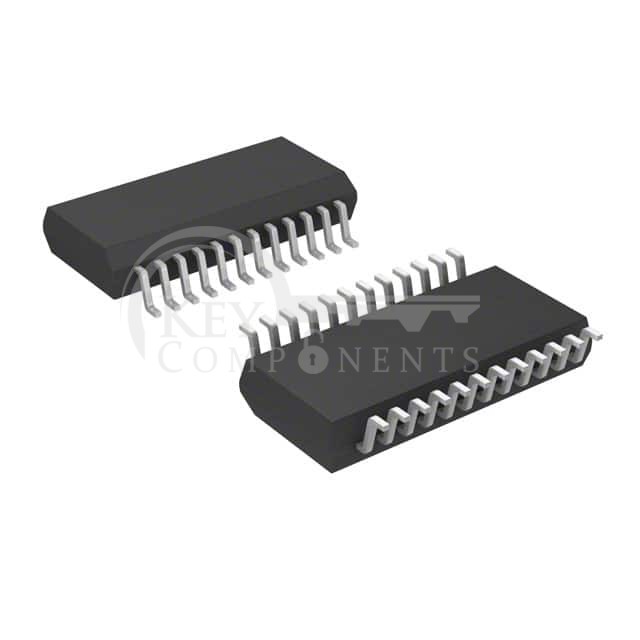

ACS764XLFTR-16AU-T
| Manufacturer Part | ACS764XLFTR-16AU-T |
|---|---|
| Manufacturer | Allegro MicroSystems |
| Description | SENSOR CURRENT HALL 16A DC |
| Category | Sensors, Transducers |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| For Measuring: | DC |
| Sensor Type: | Hall Effect, Open Loop |
| Current - Sensing: | 16A |
| Number of Channels: | 1 |
| Output: | I²C |
| Sensitivity: | - |
| Frequency: | 2kHz |
| Linearity: | ±0.75% |
| Accuracy: | ±1% |
| Voltage - Supply: | 3V ~ 3.6V |
| Response Time: | 100µs |
| Current - Supply (Max): | 14mA |
| Operating Temperature: | -40°C ~ 125°C |
| Polarization: | Unidirectional |
| Mounting Type: | Surface Mount |
| Package / Case: | 24-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package: | 24-QSOP |
