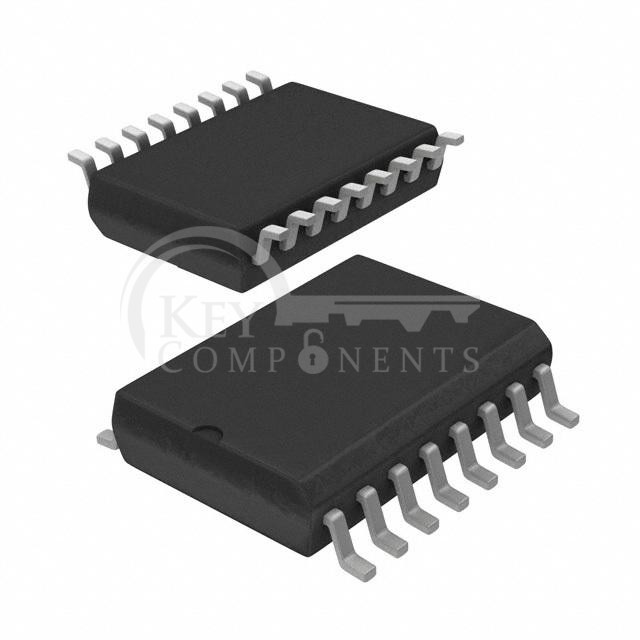

ACS723KMATR-10AB-T
| Manufacturer Part | ACS723KMATR-10AB-T |
|---|---|
| Manufacturer | Allegro MicroSystems |
| Description | SENSOR CURRENT HALL 10A AC/DC |
| Category | Sensors, Transducers |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| For Measuring: | AC/DC |
| Sensor Type: | Hall Effect, Open Loop |
| Current - Sensing: | 10A |
| Number of Channels: | 1 |
| Output: | Ratiometric, Voltage |
| Sensitivity: | 200mv/A |
| Frequency: | DC ~ 80kHz |
| Linearity: | ±1% |
| Accuracy: | ±2% |
| Voltage - Supply: | 4.5V ~ 5.5V |
| Response Time: | 5µs |
| Current - Supply (Max): | 14mA |
| Operating Temperature: | -40°C ~ 125°C |
| Polarization: | Bidirectional |
| Mounting Type: | Surface Mount |
| Package / Case: | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package: | 16-SOIC |
